Plastic Components

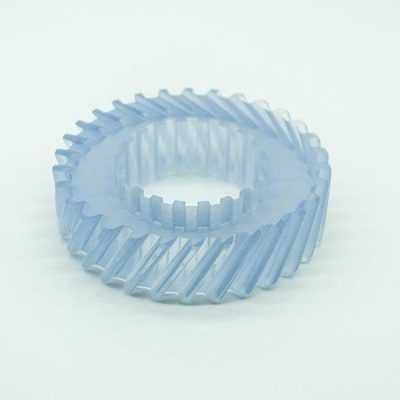

SLA Clear

Produce superb levels of smoothness, rigidity, and optical transparency – High resolution 3D printing at lower start-up costs than injection moulding

SLA Clear: Precision, Detail, and an Impeccable Surface Finish.

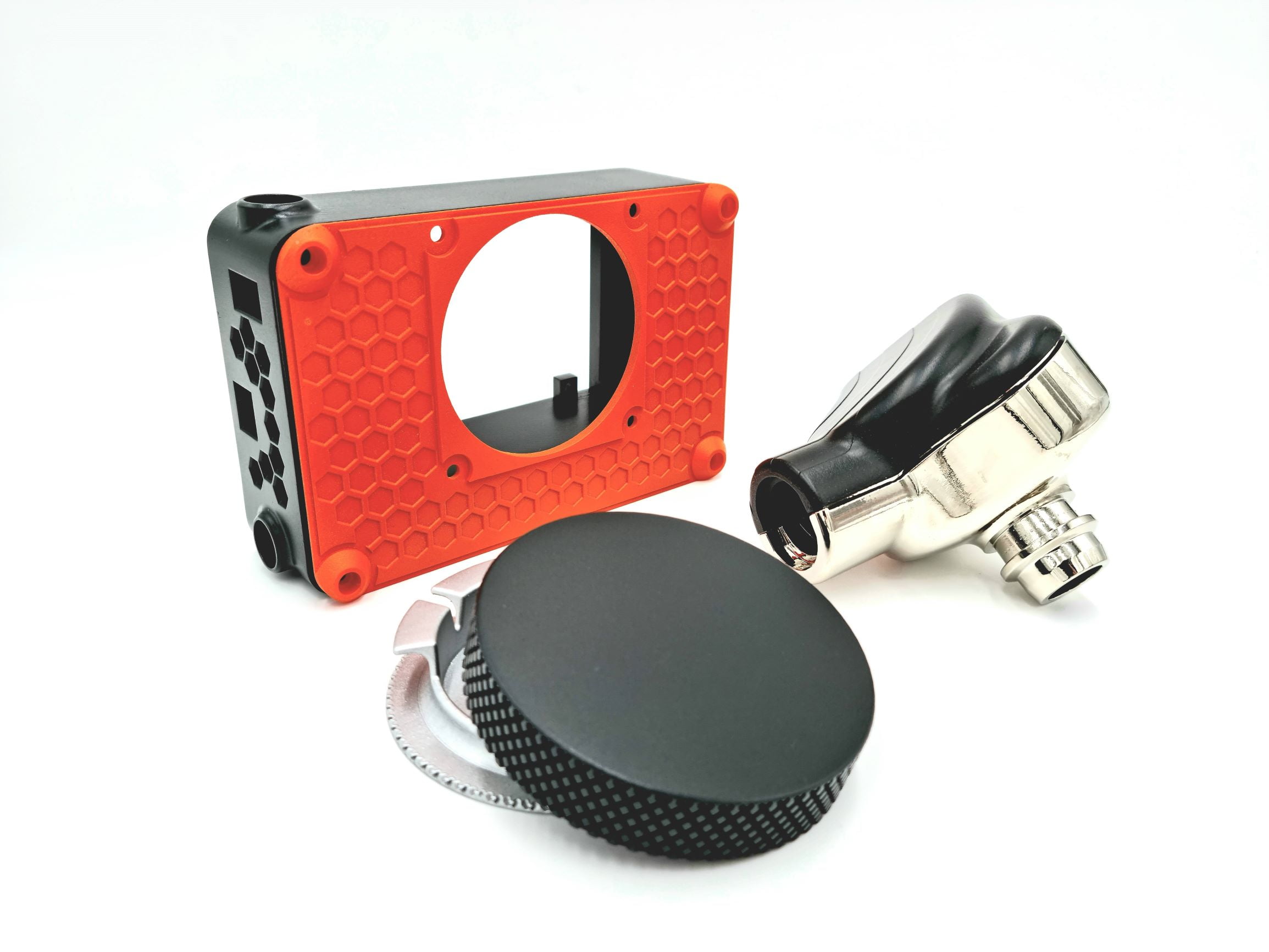

Using IPFL’s clear SLA material, we provide solutions for functional prototypes, props, lenses, and enclosures. Our machines deliver the highest resolution with an incomparable surface finish.

Benefit from the technologies provided by our multi-purpose clear resin for simulating popular engineering polymers such as ABS, nylon and polyester, for water-resistant applications, snap fit features and high-aesthetic production.

Select your SLA material from a wide range designed to meet your needs, including:

  • Standard Resins: High resolution 3D printing to produce a finish that rivals that of injection moulding
  • ABS-like resin: Known for its tough resistance against stress and strain

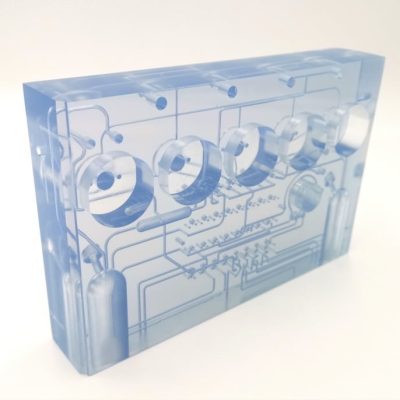

  • Clear resin: Clear 3D printing to produce small and detailed transparent components
  • Durable resin: Very flexible and favoured for its characteristics shared with Polypropylene (PP)
  • Plus, others including Heat-Resistant Resin; Rubber-like Resin; and Ceramic-Filled Resin

Why use our SLA Material?

  • Unparalleled quality over competitors: a high clarity and highly accurate finish
  • Save money with faster build times that reduce the production process
  • Get to market faster

At a Glance
Strength
High Clarity
Flexibility (Good elongation at break)
Polishing Painting Lacquering
Temperature Resistance
High accuracy
Water Resistant

Advantages & Uses

  • Water resistant
  • Excellent surface quality
  • Fast build times
  • Large build size
  • Enclosures
  • Prototyping
  • Snap-fit features
  • Prop and model making

PARAMETERS
SLA CLEAR
1 MECHANICAL PROPERTIES
Tensile strength Modulus of elasticity Izod Notched Impact
50 – 56 MPa (7,251 - 8,122 psi) 2,700 – 2,920 MPa (391,601 - 423,510 psi) 2050 J/m²
2 THERMAL PROPERTIES
HDT
49 °C (120 °F)

Other 3D Printing Materials

FDM ABS-ESD7

ABS thermoplastic with static dissipative properties for applications where a static charge can damage products.
Appearance
Toughness
Flexibility
Temperature Resistant
Technical Information
Electronics Manufacturers - Essex UK

FDM ABS-M30

Ideal material for conceptual modelling, functional prototyping, manufacturing tools and end-use-parts.
Appearance
Various
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM ABS M30 for Conceptual Modelling

FDM ASA

Now you can build consistently high-quality parts, with exceptional UV stability and the best aesthetics of any FDM thermoplastic.
Appearance
Various
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM 3D Printing Service UK

FDM PC-ISO

PC-ISO is an industrial thermoplastic, which in its raw state, is bio-compatible (ISO 10993/USP Class VI) and can be gamma or EtO sterilized.
Appearance
White
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM PC-ISO

FDM ULTEM 1010

Manufacture out-of-cabin aerospace components and under-the-hood automotive components.
Appearance
Tan
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM ULTEM 1010

FDM ULTEM 9085

ULTEM™ 9085 resin is a flame-retardant high-performance thermoplastic for digital manufacturing and rapid prototyping. It is ideal for the transportation industry due to its high strength-to-weight ratio and its FST (flame, smoke and toxicity) rating.
Appearance
Black or Tan
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM Ultem 9085

HP MJF NYLON12

Produce strong, functional, detailed and complex parts at a fraction of the cost. PA 12 is engineered to produce final parts with dimensional accuracy. Robust thermoplastic for high-density parts with balanced property profiles and strong structures.
Appearance
Available in Grey or dyed Black
Toughness
Flexibility
Temperature Resistant
Technical Information
PRODUCTION 3D PRINTING

HP MJF TPU

TPU (thermoplastic polyurethane) is a high flexibility material which is a perfect choice for many applications. Resistant to many chemicals and with high resistant, this high performing material is ideal for seals, gaskets, housings and protection shrouds among other parts.
Appearance
Grey or black
Toughness
Flexibility
Temperature Resistant
Technical Information
HP MJF TPU

MICRO RG

A durable engineering material that may be used to print working end-of-life parts. It is biocompatible, with low water absorbtion, and may be used for a variety of applications such as electrical casings, medical devices, snap fittings, and functional prototypes.
Appearance
Transparent Yellow
Toughness
Flexibility
Temperature Resistant
Technical Information
Micro RG 4

MICRO HTL

High-performance material with great stiffness and heat resistance that can tolerate temperatures of up to 114°C. Utilised in load bearing applications, HTL delivers exceptional strength, stiffness, and heat resistance, offering up new choices in tooling, dies, and fixtures for precision components.
Appearance
Black or Transparent Yellow
Toughness
Flexibility
Temperature Resistant
Technical Information
Electronics Manufacturers

POLYJET AGILUS

Rubber-like Polyjet photopolymer simulates a wide variety of finished products, from soft-grip handles to footwear. Combine 30-95 ShoreA with rigid materials for seals, gaskets and soft-touch overmoulds.
Appearance
Black
Toughness
Flexibility
Temperature Resistant
Technical Information
Polyjet Agilus Seal & Gasket

POLYJET DIGITAL ABS

Digital ABS is designed to simulate standard ABS plastics by combining high-temperature resistance with toughness. Digital ABS2 delivers those properties plus superior rigidity and toughness in walls thinner than 1.2 mm.
Appearance
Toughness
Flexibility
Temperature Resistant
Technical Information
polyjet digital abs

POLYJET VERO

Combining dimensional stability and fine detail, Rigid Opaque materials are a key component in realistic prototypes that look like your end products, and fit-for-purpose tooling that moves you into production faster.
Appearance
Toughness
Flexibility
Temperature Resistant
Technical Information
polyjet vero prototypes uk

SLA CLEAR

Our clear SLA material is produced at high resolution in all axis giving an incomparable surface finish straight from the machine.
Appearance
Clear
Toughness
Flexibility
Temperature Resistant
Technical Information
3D printing service plastic prototypes

SLA: How does it work?

Stereolithography (SLA) printing was introduced in the mid-1980s by Charles Hull. Initially focused on rapid prototyping, SLA printing rapidly evolved to encompass a wider range of applications, including functional prototypes, intricate models, and even some end-use parts.

SLA printing operates by solidifying liquid photopolymer resin layer by layer using UV light. After completion, the object is rinsed to eliminate excess resin and cured, often involving additional UV exposure, for enhancing the object’s final properties.

SLA’s precision and ability to create intricate, smooth-surfaced objects make it valuable for applications like rapid prototyping, dental models, and artistic designs.

Contact us now to help you get started on your 3D Printing project using SLA.
